These
images were done for a CAD project. We basically had to do
some very simple concepts, not having to worry about the
manufacturing techniques or any other technicle aspects of the
design. It was basically just to get us used to doing technicle images
in AutoCAD. But I haven't put these up here because they don't look

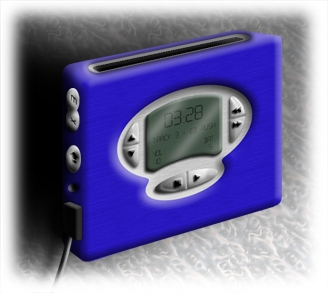

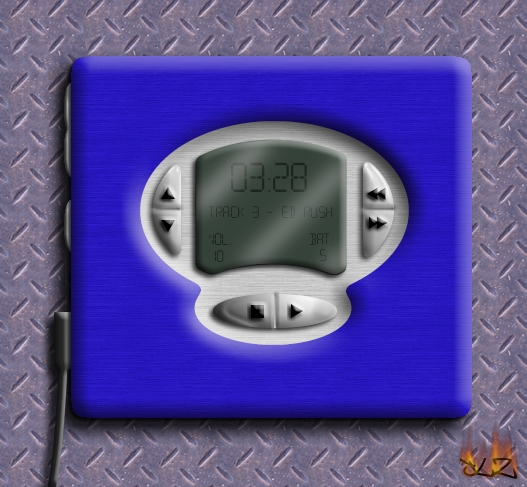

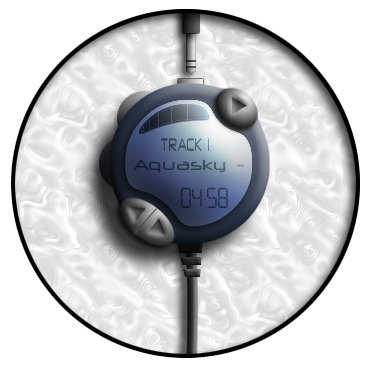

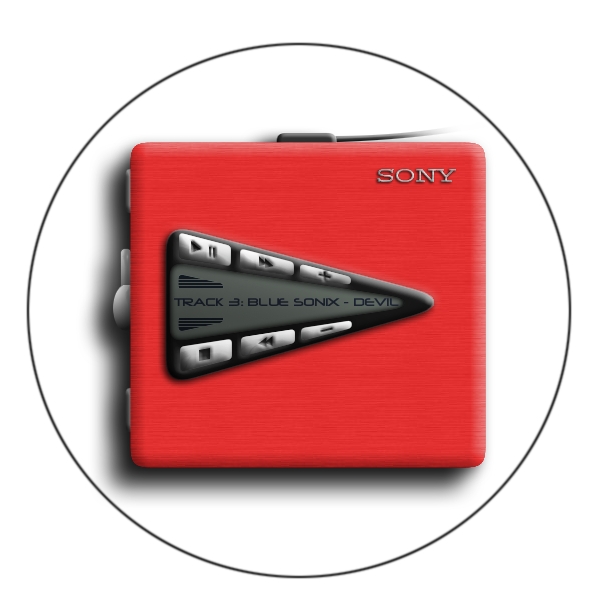

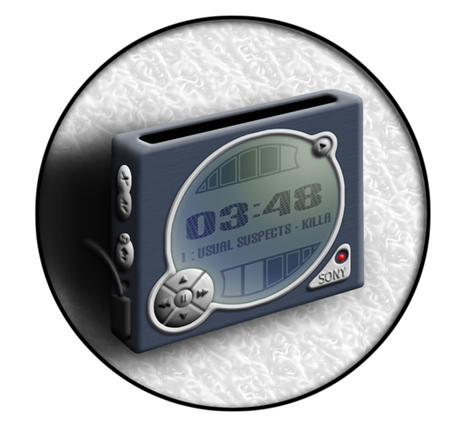

very exciting. These images are justa buch of concepts and stuff I
did
in Adobe Photoshop to complement the hand drawn/rendered stuff.
As you
can see, the perspective really isn't right... I should have
used a bare 3D object, then done the work over the top of that.
I really need to learn some 3D programs!!
